Clean it up

Focus on the interpretation of your data thanks to our solution dedicated to data quality for motion analysis

Our applications are availables in light or dark themes.

features

Data harmonisation

Each project is different and similar at the same time. You may want to analyse data from different experimental protocols, from different projects realized along the years, or you started a collaboration and the name of the outputs are not the same or reversed. This should not be a constraint or a blocker.

We propose reusable data contract templates which give you the possibility to create projects.

Reloadable project

You started your project as a pilot study and then extended it to analyze a specific population for one condition, but you have also this second condition to analyze later. Have you to verify and clean your data again? Of course not! You can start several projects, analyze the data at your pace, export some results, increase the number of samples, and so on. We know how painful it is to lose experimental data, so we created a solution to eliminate this issue.

Multiple data sources at once

We provide an easy way to load various data sourc- es (e.g., C3D, MVNX, TXT, etc.) and you can select only the ones of interest, from the same or various folders, on your local computer or your network.

The convenient user experience will give you the opportunity to drag and drop multiple data source into an analysis.

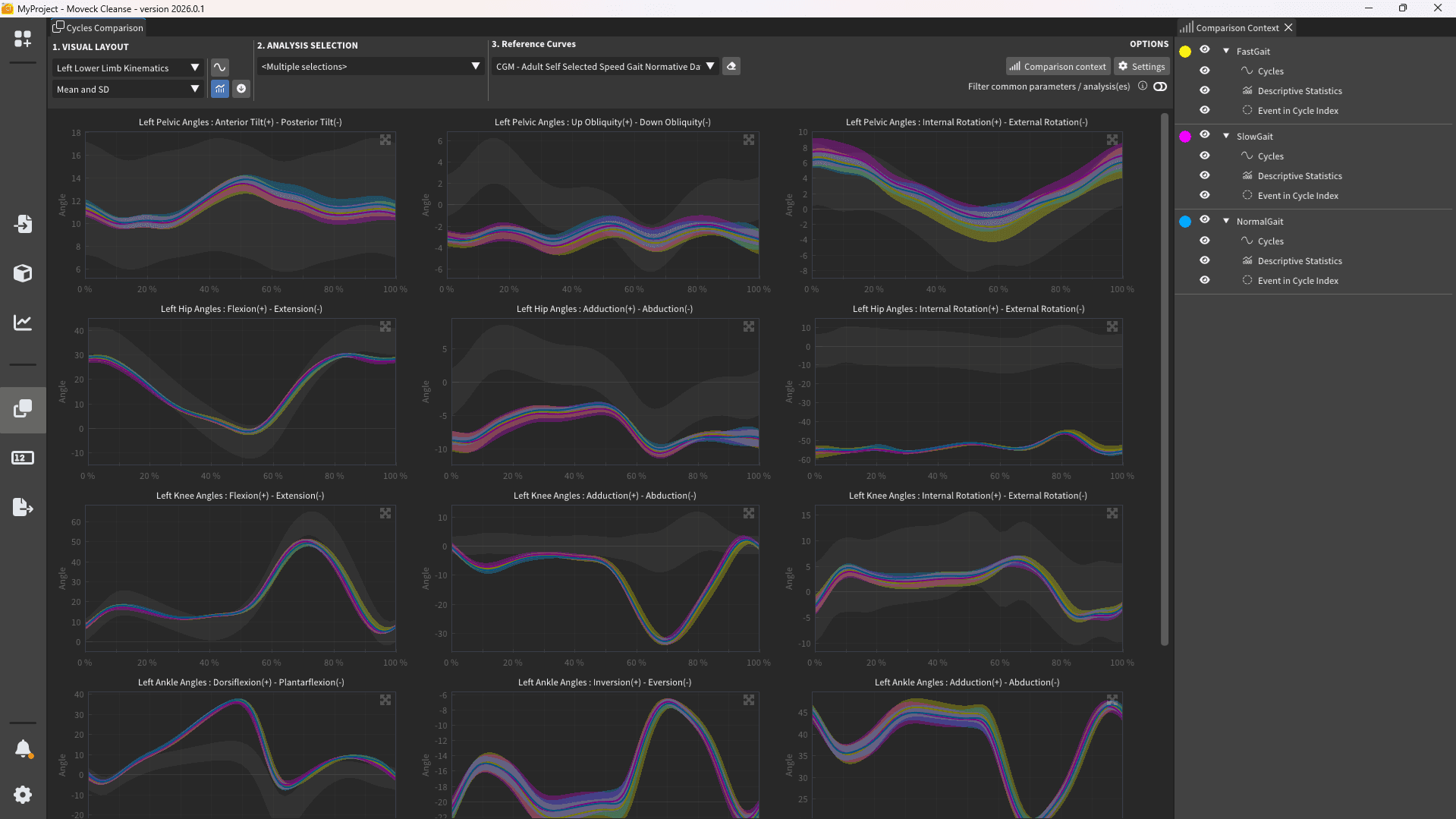

Multiple analyses at once

Do you want to compare the effect of an algorithm (data filtering, gap filling), the choice of an even detection method, the outputs of a biomechanical model (joint kinematics and kinetics), this is the same for Cleanse?

You can use the same data sources dispatched to different analyses or different data sources to different analyses. Internally we efficiently manage the data to process and access it quickly!

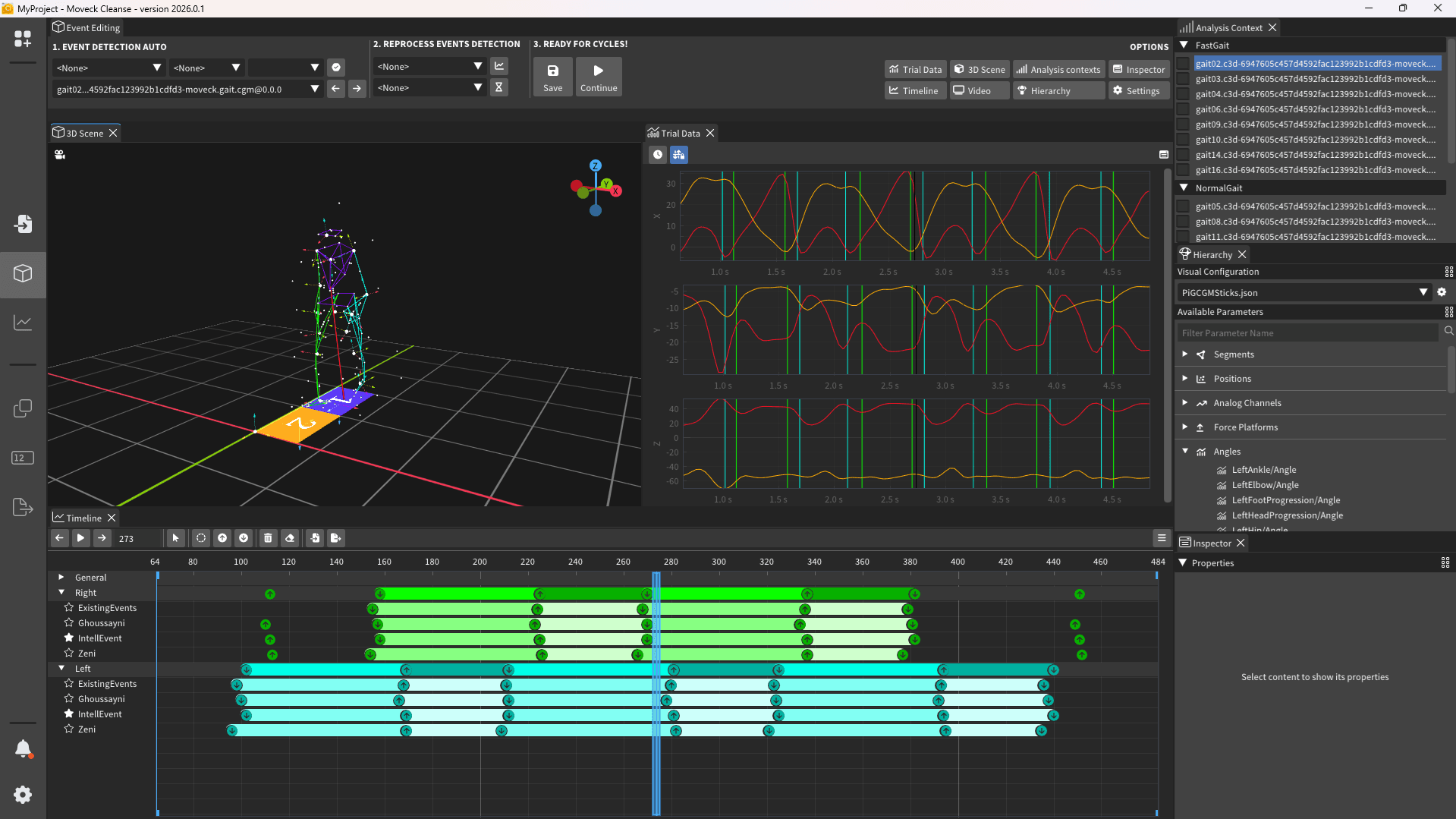

Events verification

Then, once the data are grouped by analyses, let seat comfortably and start the cleansing. Based on our knowledge and experiences, we tackle the cumbursomes remaining steps once you get processed data.

Let’s start verifying the detected events trial after trial with no intermediate loading that slows down the process. Selected data stays available, the camera look at the data, you can focus effectively on the verification of the events per context.

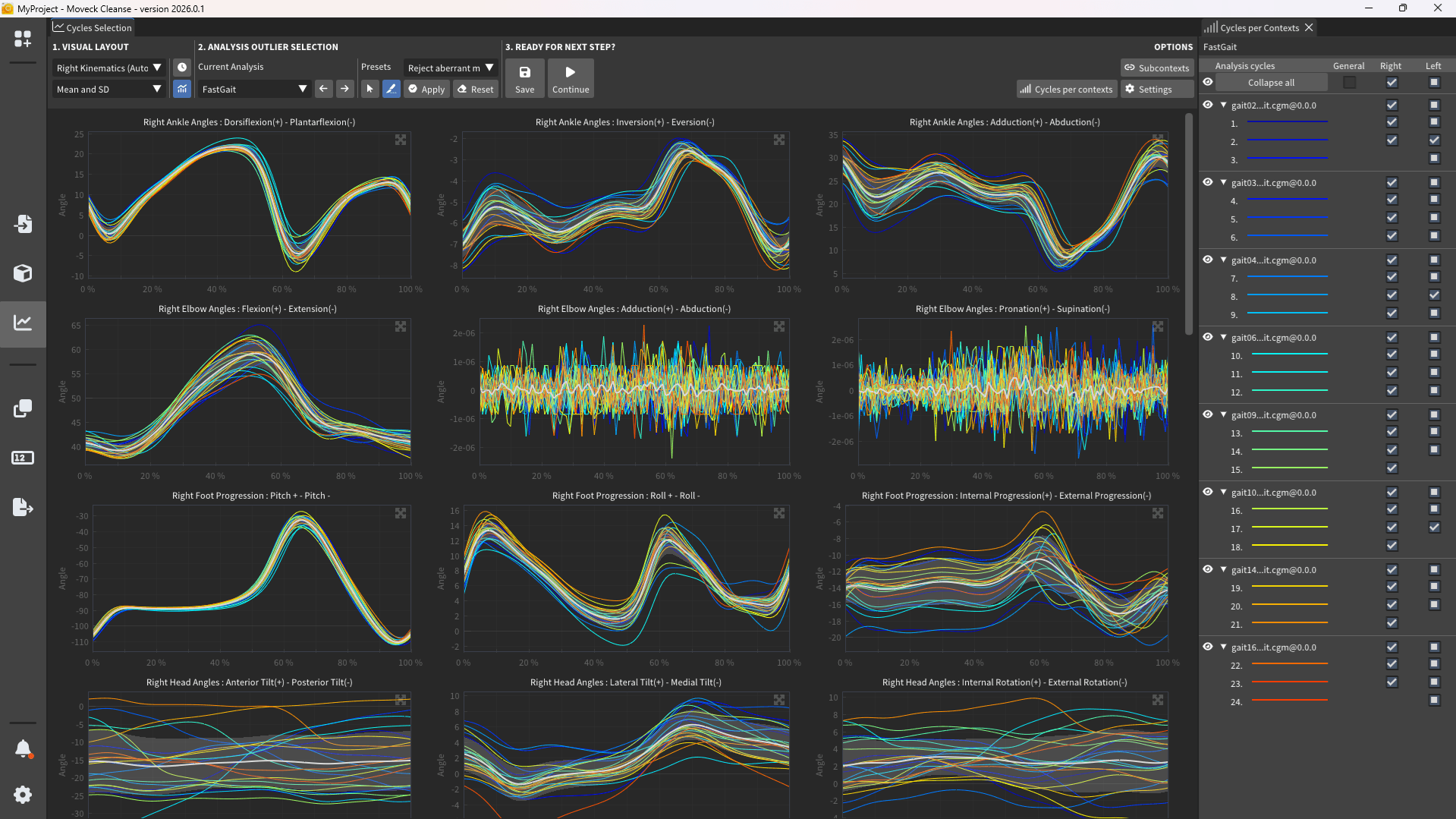

Cyclic outlier exclusion

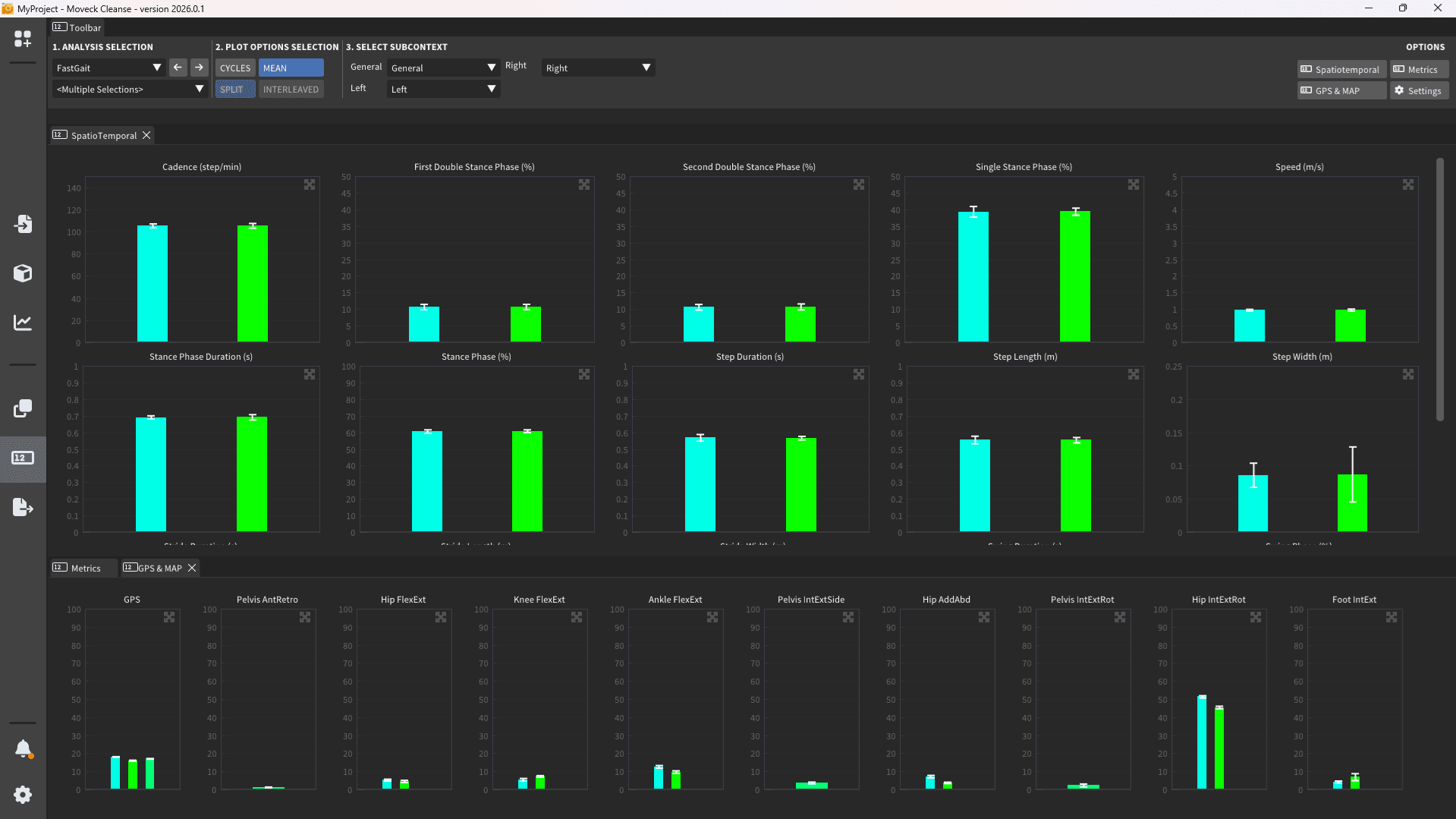

Then, per analysis, all created cycles are length normalized and displayed per parameter, using automatic or custom layouts. You can interact with the charts and the user interface to discard unexpected cycles. Descriptive statistics will be automatically updated in consequence.

Some of the available manual tools to exclude cycles are the traditional point and click as well as the knife. There are also the possibility to create automatic exclusion rules.

Do you need another feature?
Let's discuss it!

data source formats

format

verified vendors

imported data

C3D

C-Motion, Qualisys, Theia Markerless, Vicon

Analogs, Points, Rotation

EXP

MVNX

The Motion Monitor

Movella

All columns

The suit model

TXT

C-Motion,The Motion Monitor

All columns

The format from your motion capture system is not listed above?
Let's discuss it!

report formats

format

description

XLSX per analysis

Selected cycles per trial, length normalized parameters

XLSX per comparison

Selected cycles per trial, length normalized parameters

Looking for another report format? To be uploaded on a cloud?
Let's discuss it!
